LCBX4-14H-L
CONN TERM RECT TONG 4 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

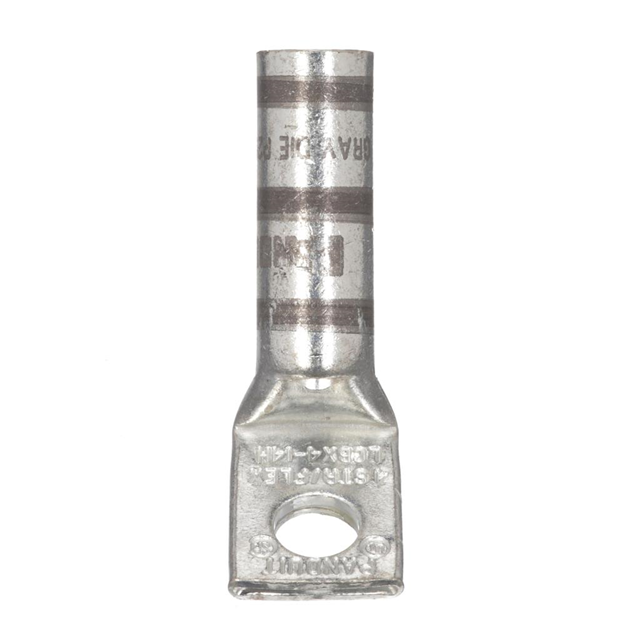

Panduit Corp Pan-Lug™ LCBX4-14H-L is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component is suitable for 4 AWG wire gauges and features a 1/4 stud size for secure mounting. The terminal style is single stud hole with a barrel termination type, utilizing a crimp method. Key dimensions include an outer edge width of 0.550" (13.97mm) and a tab thickness of 0.090" (2.29mm). The mounting type offers flexibility with options for free hanging (in-line) or a 45° angle configuration. This Panduit Corp Pan-Lug™ terminal finds application in industrial power distribution and heavy-duty electrical equipment. Available in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Gray |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 4 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.550"" (13.97mm) |
| Tab Thickness | 0.090"" (2.29mm) |
| Terminal Style | Single Stud Hole |
