LCBX350-38F-6
CONN TERM RECT TONG 350 MCM #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

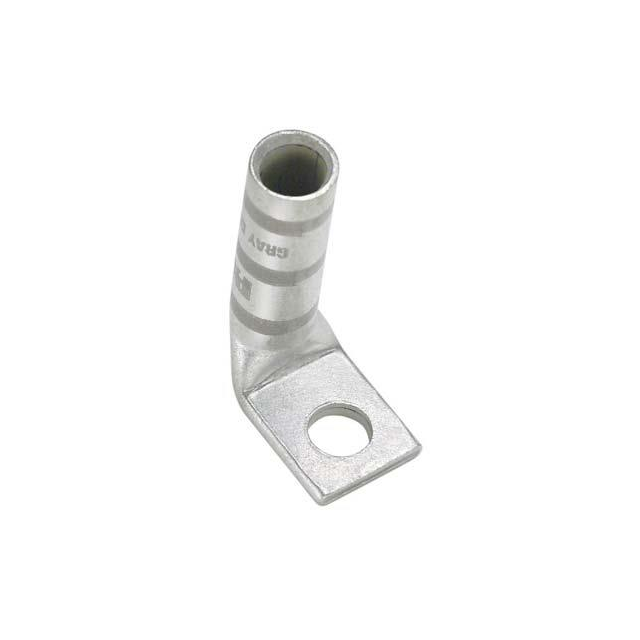

Panduit Corp Pan-Lug™ LCBX350-38F-6 is a non-insulated, rectangular tongue terminal connector designed for 350 MCM (kcmil) conductor sizes. Featuring a single stud hole with a 3/8" stud size and a tab thickness of 0.220" (5.59mm), this terminal is suitable for crimp barrel termination. The overall width of the outer edges is 1.540" (39.12mm). Mounting options include free hanging (in-line) and right-angle configurations. This component is commonly utilized in power distribution and industrial automation applications where secure and reliable electrical connections are critical. Supplied in bulk packaging, the Panduit Corp LCBX350-38F-6 offers robust performance for demanding electrical infrastructure.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 350MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.540"" (39.12mm) |
| Tab Thickness | 0.220"" (5.59mm) |
| Terminal Style | Single Stud Hole |
