LCBX300-38-6
CONN TERM RECT TONG 300 MCM #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

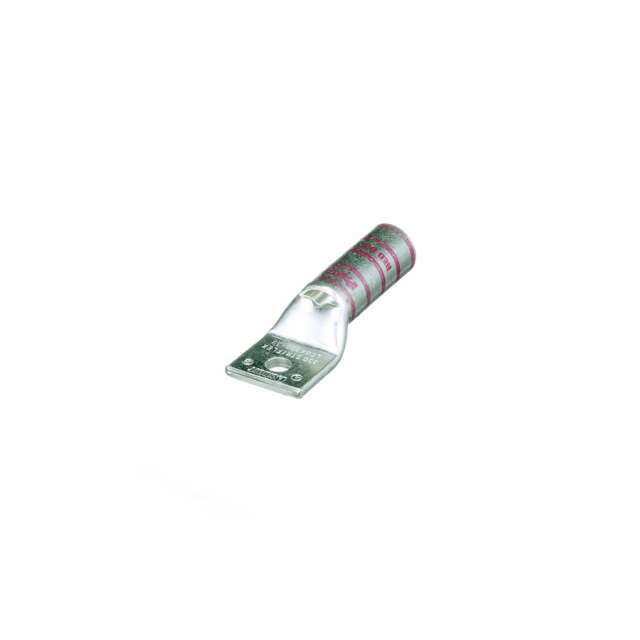

Panduit Corp Pan-Lug™ LCBX300-38-6 is a non-insulated, rectangular tongue terminal with a single 3/8 stud hole. This crimp termination lug is designed for 300 MCM (kcmil) wire gauge and features a barrel termination. The overall length is 4.020 inches (102.11mm) with an outer width of 1.390 inches (35.31mm) and a tab thickness of 0.180 inches (4.57mm). It is suitable for free hanging (in-line) mounting. This component is commonly utilized in power distribution and electrical infrastructure applications.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 300MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | 4.020"" (102.11mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.390"" (35.31mm) |
| Tab Thickness | 0.180"" (4.57mm) |
| Terminal Style | Single Stud Hole |
