LCBX3/0-38F-X
CONN TERM RECT TONG 3/0 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

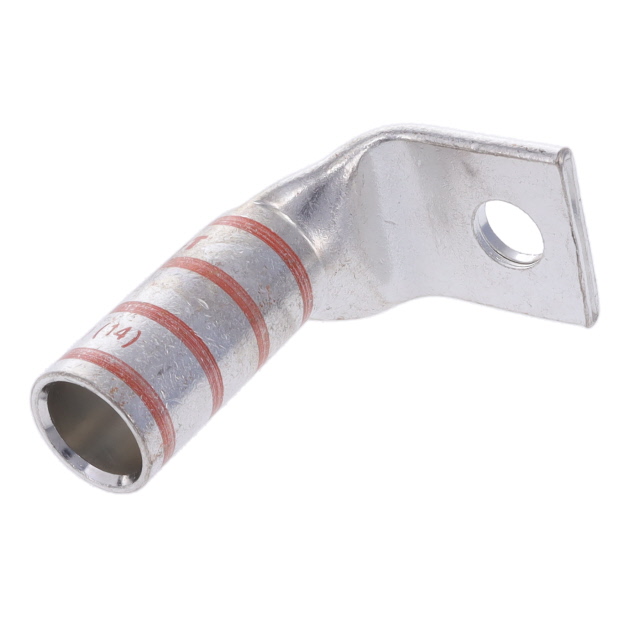

Panduit Corp Pan-Lug™ LCBX3-0-38F-X is a non-insulated, single stud hole rectangular tongue terminal designed for 3/0 AWG wire. This component features a 3/8 stud size with a tab thickness of 0.130 inches (3.30mm) and an overall width of 0.960 inches (24.38mm). Termination is achieved via crimp to a barrel. The LCBX3-0-38F-X offers versatile mounting options, including free hanging (in-line) and right angle configurations. This terminal is commonly utilized in industrial and power distribution applications where robust and reliable electrical connections are paramount. Packaged in bulk, its orange color may indicate specific voltage or application coding.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Orange |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 3/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.960"" (24.38mm) |
| Tab Thickness | 0.130"" (3.30mm) |
| Terminal Style | Single Stud Hole |
