LCBX250-38F-X
CONN TERM RECT TONG 250 MCM #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

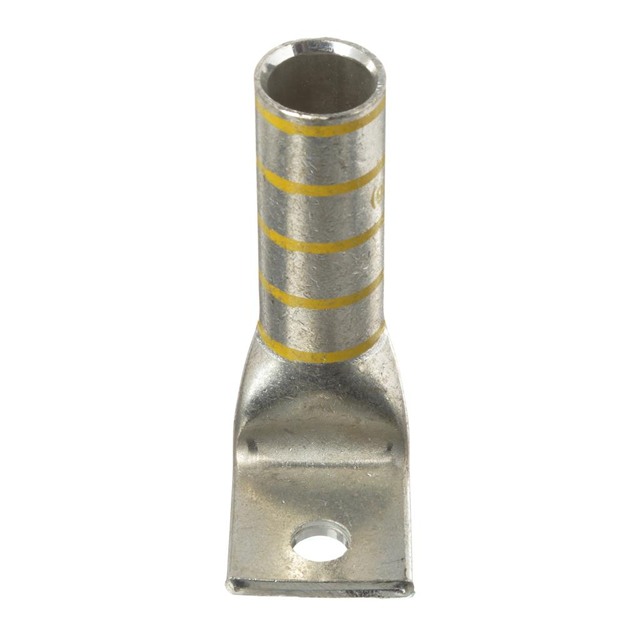

Panduit Corp Pan-Lug™ LCBX250-38F-X is a non-insulated, rectangular tongue terminal connector designed for crimp barrel termination. This component supports wire gauges up to 250MCM (kcmil) and is secured with a 3/8 stud. Key dimensions include an outer edge width of 1.280 inches (32.51mm) and a tab thickness of 0.170 inches (4.32mm). The terminal style features a single stud hole for robust connection. Mounting options include free hanging (in-line) and right angle configurations. Applications for this Panduit Corp Pan-Lug™ component are prevalent in power distribution, industrial automation, and heavy electrical equipment manufacturing.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 250MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.280"" (32.51mm) |
| Tab Thickness | 0.170"" (4.32mm) |
| Terminal Style | Single Stud Hole |
