LCBX250-38-X
CONN TERM RECT TONG 250 MCM #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

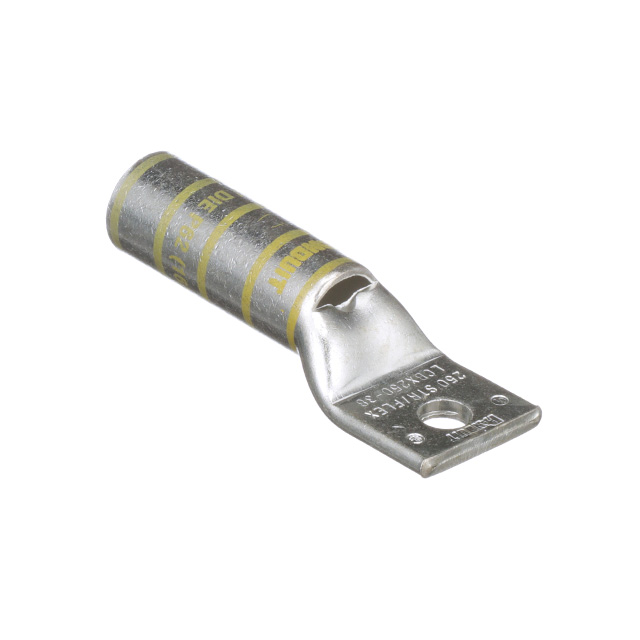

Panduit Corp Pan-Lug™ LCBX250-38-X is a non-insulated, single stud hole, rectangular tongue terminal connector designed for 250 MCM (kcmil) wire gauge. This component features a 3/8" stud size with a tab thickness of 0.170" (4.32mm) and an overall length of 3.780" (96.00mm). The outer edges measure 1.280" (32.51mm) in width. Termination is achieved via crimp, utilizing a barrel design. This connector is suitable for free hanging (in-line) mounting applications. The Panduit Corp LCBX250-38-X is commonly utilized in power distribution and electrical infrastructure industries. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 250MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | 3.780"" (96.00mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.280"" (32.51mm) |
| Tab Thickness | 0.170"" (4.32mm) |
| Terminal Style | Single Stud Hole |
