LCBX2-14H-E
CONN TERM RECT TONG 2 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

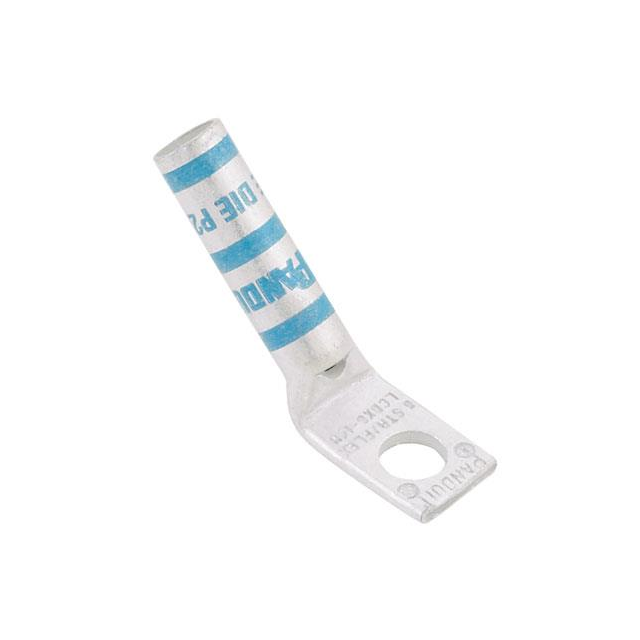

Panduit Corp Pan-Lug™ LCBX2-14H-E is a non-insulated rectangular tongue terminal connector designed for robust electrical connections. This component accommodates 2 AWG wire gauge and features a 1/4 stud size with a tab thickness of 0.110 inches (2.79mm). The terminal style is a single stud hole, with termination achieved via crimp to a barrel. Its outer edge width measures 0.700 inches (17.78mm). The mounting type supports free hanging (in-line) configurations, including a 45° angle option. This Panduit Corp connector is suitable for applications in power distribution, industrial automation, and renewable energy systems. The LCBX2-14H-E is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 2 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.700"" (17.78mm) |
| Tab Thickness | 0.110"" (2.79mm) |
| Terminal Style | Single Stud Hole |
