LCBX2/0-14F-X
CONN TERM RECT TONG 2/0 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

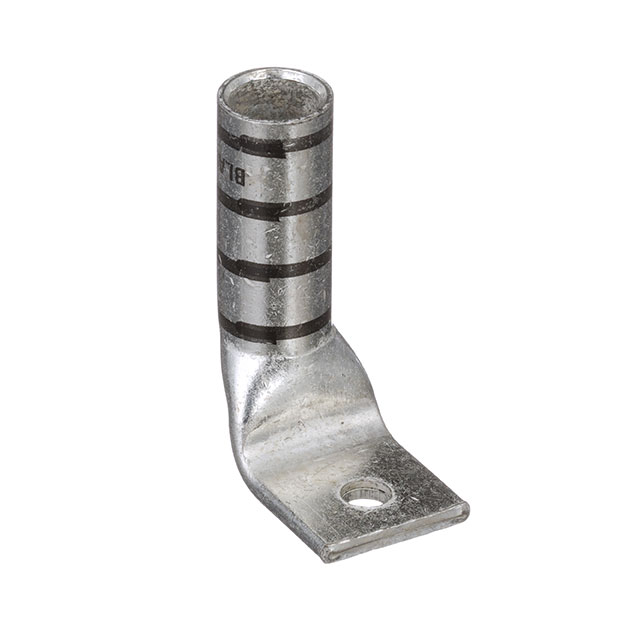

Panduit Corp Pan-Lug™ LCBX2-0-14F-X is a non-insulated rectangular tongue terminal connector designed for robust applications. This component facilitates a 2/0 AWG wire gauge with a 1/4 stud size and a tab thickness of 0.130 inches (3.30mm). The terminal style features a single stud hole, and termination is achieved via crimp to the barrel. With an outer edge width of 0.960 inches (24.38mm), the LCBX2-0-14F-X offers a secure connection point. Its mounting type allows for free hanging (in-line) or right-angle configurations, making it suitable for power distribution, industrial automation, and renewable energy systems. Supplied in bulk packaging, this component prioritizes reliable electrical connections in demanding environments.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Black |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 2/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.960"" (24.38mm) |
| Tab Thickness | 0.130"" (3.30mm) |
| Terminal Style | Single Stud Hole |
