LCBX2/0-14-X
CONN TERM RECT TONG 2/0 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

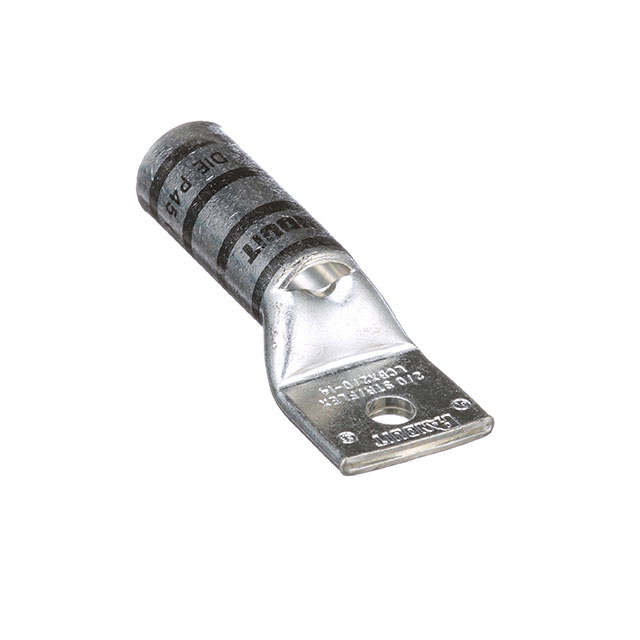

Panduit Corp Pan-Lug™ LCBX2-0-14-X is a non-insulated, rectangular tongue terminal connector designed for 2/0 AWG wire. This crimp-style terminal features a single 1/4 stud hole for secure mounting. With an overall length of 2.640 inches (67.06mm) and a width of 0.960 inches (24.38mm), it offers a 0.130 inch (3.30mm) tab thickness. The free hanging (in-line) mounting type facilitates flexible installation. This component is commonly utilized in power distribution and electrical infrastructure applications. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Black |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 2/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 2.640"" (67.06mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.960"" (24.38mm) |
| Tab Thickness | 0.130"" (3.30mm) |
| Terminal Style | Single Stud Hole |
