LCBX1-56H-X
CONN TERM RECT TONG 1 AWG #5/16Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

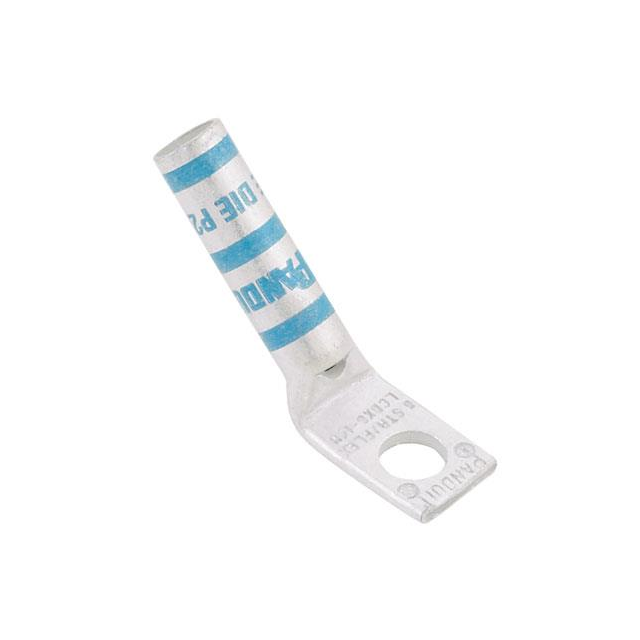

Panduit Corp Pan-Lug™ LCBX1-56H-X is a non-insulated, rectangular tongue terminal with a single 5/16 stud hole. Designed for crimp termination of 1 AWG wire, this lug features a 0.120" (3.05mm) tab thickness and a 0.760" (19.30mm) outer edge width. The mounting type is free hanging (in-line) with a 45° angle. This component is commonly utilized in power distribution, industrial automation, and renewable energy applications.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Green |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 1 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 5/16 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.760"" (19.30mm) |
| Tab Thickness | 0.120"" (3.05mm) |
| Terminal Style | Single Stud Hole |
