LCBX1-56F-X
CONN TERM RECT TONG 1 AWG #5/16Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

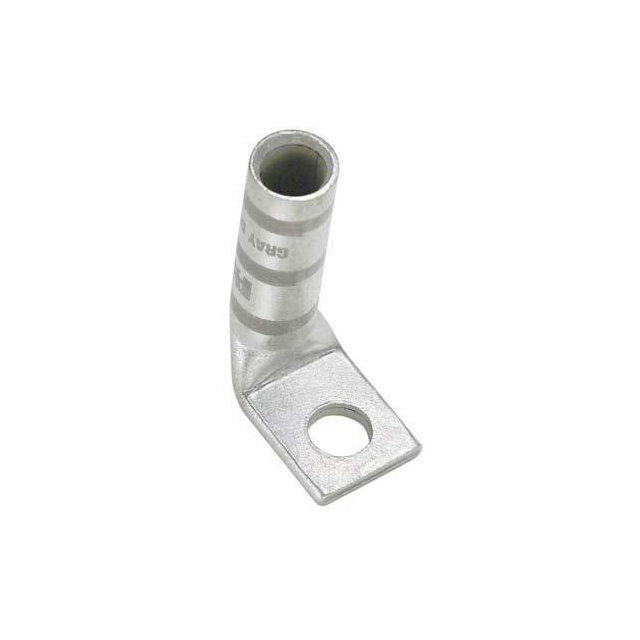

Panduit Corp Pan-Lug™ LCBX1-56F-X is a non-insulated, rectangular tongue terminal connector designed for 1 AWG wire. This component features a single stud hole with a 5/16" stud size and a tab thickness of 0.120" (3.05mm). The overall width across the outer edges is 0.760" (19.30mm). Termination is achieved via crimp to the barrel. The mounting type supports free hanging (in-line) and right-angle configurations. This terminal connector is commonly utilized in industrial and power distribution applications where robust electrical connections are critical. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Green |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 1 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 5/16 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.760"" (19.30mm) |
| Tab Thickness | 0.120"" (3.05mm) |
| Terminal Style | Single Stud Hole |
