LCBX1-56-X
CONN TERM RECT TONG 1 AWG #5/16Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

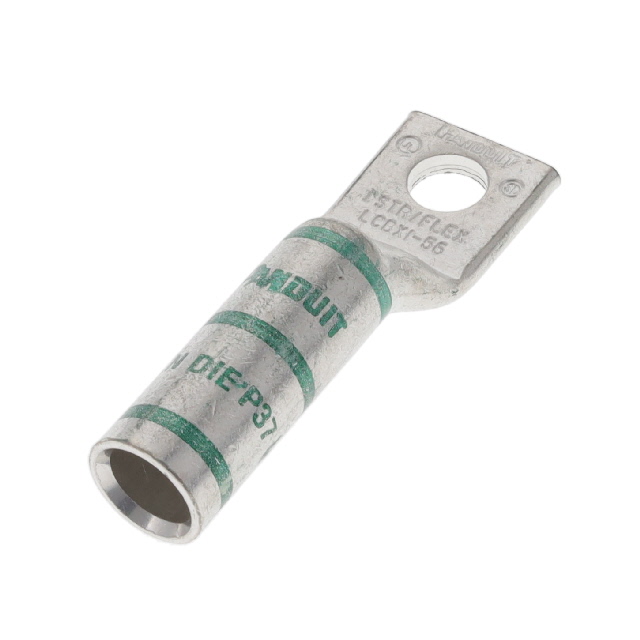

Panduit Corp Pan-Lug™ LCBX1-56-X is a non-insulated, single stud hole rectangular tongue terminal designed for 1 AWG wire. This component features a 5/16 stud size and a tab thickness of 0.120 inches, with an overall length of 2.500 inches and a width of 0.760 inches. The terminal type is Crimp, Barrel, facilitating a secure connection. Its free-hanging (in-line) mounting type makes it suitable for various industrial applications, including power distribution and heavy-duty electrical equipment. The green coloring aids in identification within complex wiring systems. Manufactured by Panduit Corp, this component is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Green |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 1 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 5/16 Stud |
| Length - Overall | 2.500"" (63.50mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.760"" (19.30mm) |
| Tab Thickness | 0.120"" (3.05mm) |
| Terminal Style | Single Stud Hole |
