LCBX1-14-X
CONN TERM RECT TONG 1 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

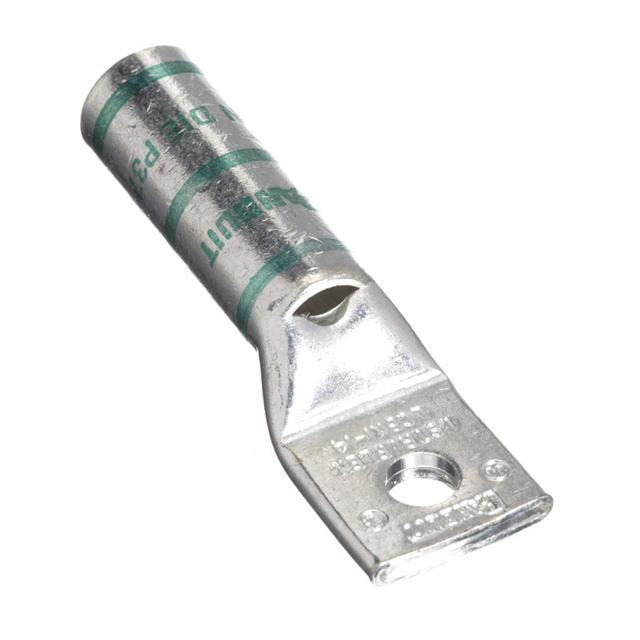

Panduit Corp Pan-Lug™ LCBX1-14-X is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component features a single stud hole with a 1/4" stud size and a tab thickness of 0.120" (3.05mm). It is engineered for crimp termination with a barrel style, supporting 1 AWG wire gauge. The overall length is 2.440" (61.98mm) with an outer edge width of 0.760" (19.30mm). The LCBX1-14-X is suitable for applications in industrial automation, power distribution, and heavy equipment manufacturing where reliable and secure wire termination is critical. This item is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Green |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 1 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 2.440"" (61.98mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.760"" (19.30mm) |
| Tab Thickness | 0.120"" (3.05mm) |
| Terminal Style | Single Stud Hole |
