LCBX1/0-14-X
CONN TERM RECT TONG 1/0 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

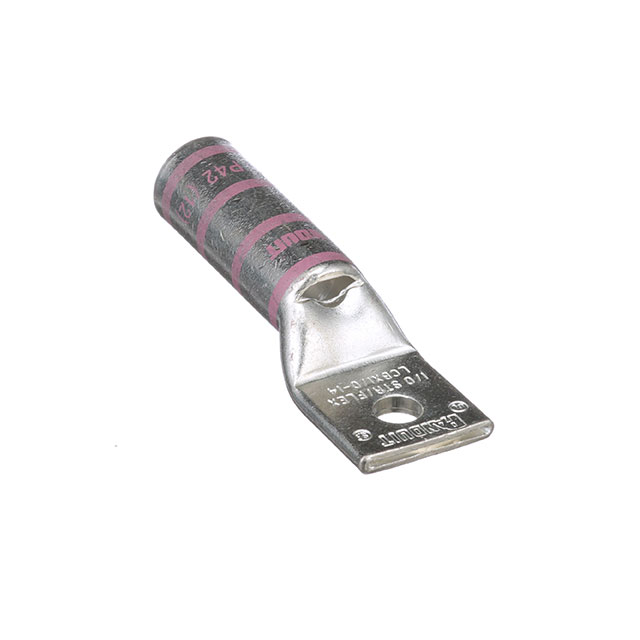

Panduit Corp LCBX1-0-14-X is a non-insulated Pan-Lug™ series terminal connector featuring a rectangular tongue with a single stud hole for 1/4 inch studs. This component is designed for 1/0 AWG wire and utilizes a crimp barrel termination. With an overall length of 2.610 inches (66.29mm) and a width of 0.850 inches (21.59mm), it offers a tab thickness of 0.130 inches (3.30mm). The LCBX1-0-14-X is suitable for free hanging, in-line mounting applications. This terminal is commonly employed in power distribution and electrical infrastructure within the industrial and telecommunications sectors.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Pink |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 1/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 2.610"" (66.29mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.850"" (21.59mm) |
| Tab Thickness | 0.130"" (3.30mm) |
| Terminal Style | Single Stud Hole |
Request a Quote
