LCBH250-12-X
CONN TERM RECT TONG 250 MCM #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

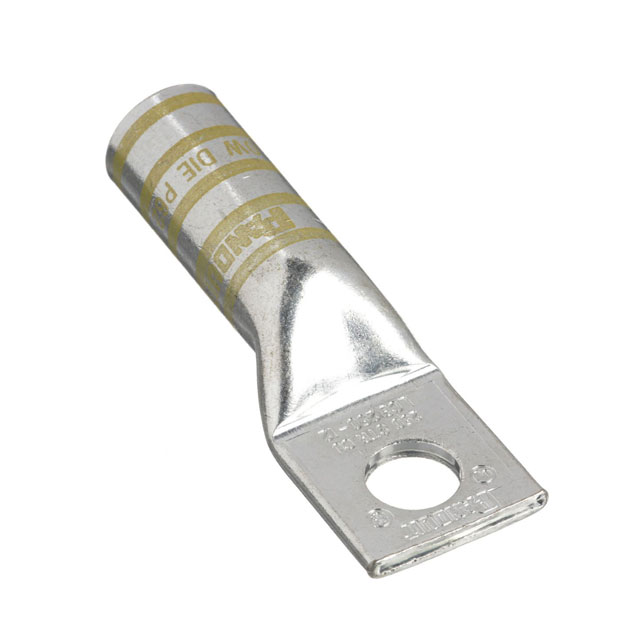

Panduit Corp Pan-Lug™ LCBH250-12-X is a non-insulated, rectangular tongue terminal designed for robust electrical connections. This component accommodates wire sizes up to 250MCM (kcmil) and features a 1/2 stud size for secure mounting. The single stud hole terminal style ensures reliable crimp termination within its barrel. With an overall length of 3.320 inches (84.33mm) and an outer edge width of 1.170 inches (29.72mm), it offers substantial contact surface area. The tab thickness measures 0.140 inches (3.56mm). This Panduit Corp Pan-Lug™ terminal is suitable for applications requiring high-current handling and durable connections in industries such as power distribution and industrial automation. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 250MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | 3.320"" (84.33mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.170"" (29.72mm) |
| Tab Thickness | 0.140"" (3.56mm) |
| Terminal Style | Single Stud Hole |
