LCB750-58W-6
CONN TERM RECT TONG 750 MCM #5/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

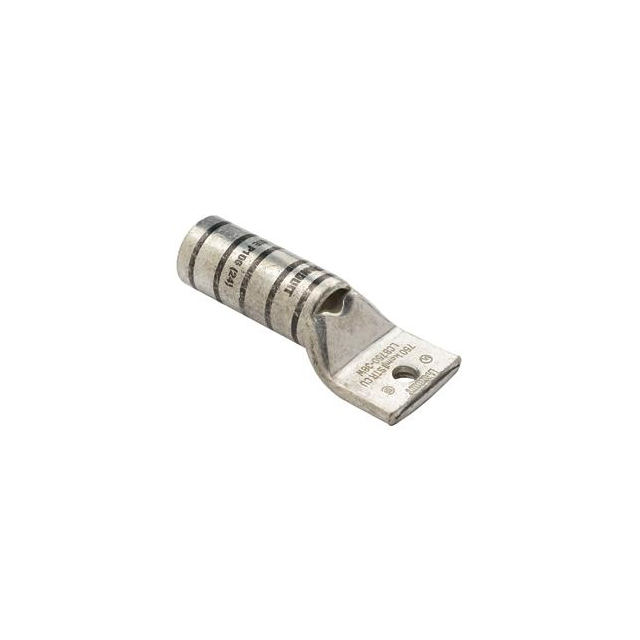

Panduit Corp Pan-Lug™ LCB750-58W-6 is a non-insulated, rectangular tongue terminal connector designed for high-capacity power applications. This component accommodates 750 kcmil wire gauge and features a single 5/8 stud hole for secure mounting. The overall length is 5.580 inches (141.73mm) with an outer edge width of 1.890 inches (48.01mm) and a tab thickness of 0.260 inches (6.60mm). Termination is achieved via crimp to the barrel. The LCB750-58W-6 is suitable for applications in industrial power distribution and heavy-duty electrical equipment. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Black |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 750MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 5/8 Stud |
| Length - Overall | 5.580"" (141.73mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.890"" (48.01mm) |
| Tab Thickness | 0.260"" (6.60mm) |
| Terminal Style | Single Stud Hole |
