LCB6-38H-L
CONN TERM RECT TONG 6 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

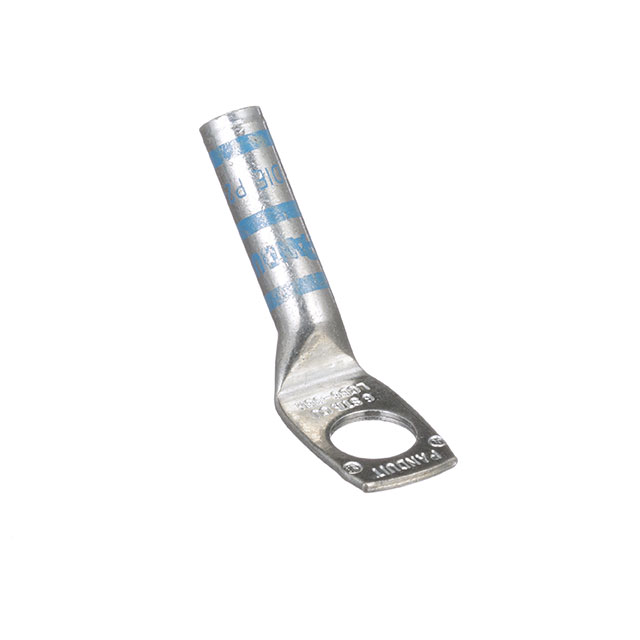

Panduit Corp Pan-Lug™ LCB6-38H-L is a non-insulated, rectangular tongue terminal connector designed for 6 AWG wire. This component features a single stud hole with a 3/8" stud size and a tab thickness of 0.050" (1.27mm). The terminal type is a rectangular tongue, and termination is achieved via crimp to the barrel. Its outer edges measure 0.620" (15.75mm) in width. Mounting options include free hanging (in-line) or at a 45° angle. This Panduit Corp component is suitable for various industrial applications including power distribution and electrical equipment manufacturing. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 6 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.620"" (15.75mm) |
| Tab Thickness | 0.050"" (1.27mm) |
| Terminal Style | Single Stud Hole |
