LCB500-12H-6
CONN TERM RECT TONG 500 MCM #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

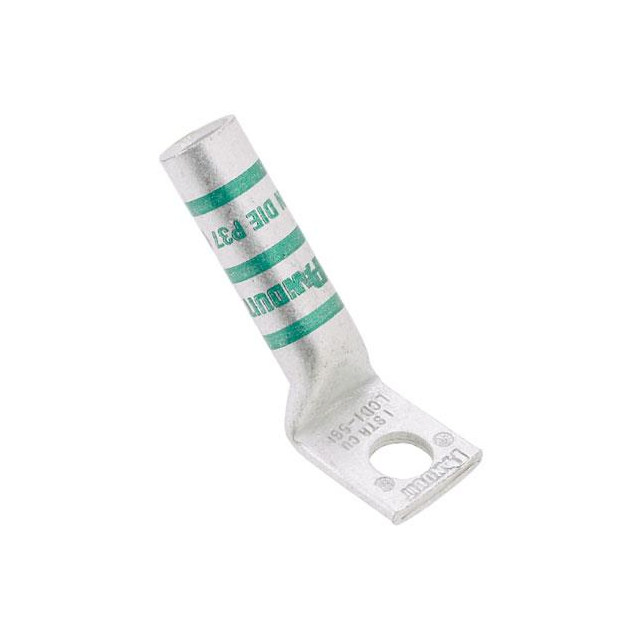

Panduit Corp Pan-Lug™ LCB500-12H-6 is a non-insulated, rectangular tongue terminal connector designed for high-power applications. This component features a single stud hole with a 1/2" stud size and a tab thickness of 0.220". The terminal type is a rectangular tongue, and it supports a wire gauge of 500MCM (kcmil). Termination is achieved via crimp to the barrel. The overall width of the outer edges measures 1.540" (39.12mm). The mounting type offers flexibility with options for free hanging (in-line) or a 45° angle. Product packaging is bulk. This terminal is commonly utilized in power distribution, industrial control systems, and heavy equipment manufacturing.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 500MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.540"" (39.12mm) |
| Tab Thickness | 0.220"" (5.59mm) |
| Terminal Style | Single Stud Hole |
