LCB400-58H-6
CONN TERM RECT TONG 400 MCM #5/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

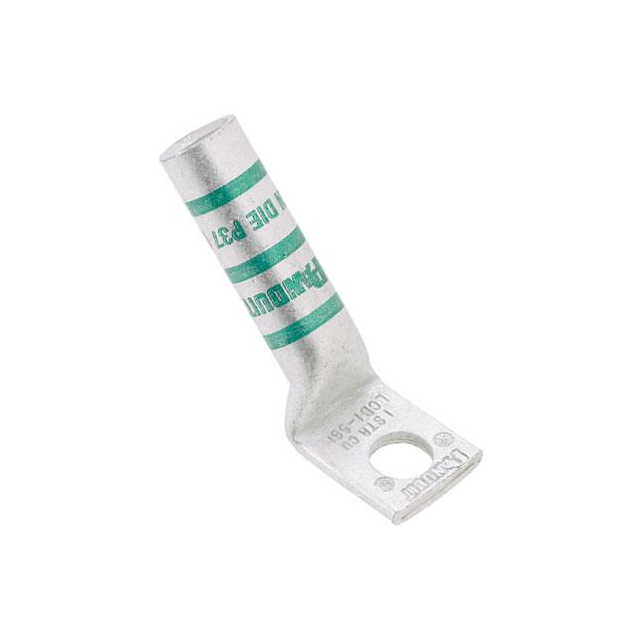

Panduit Corp Pan-Lug™ LCB400-58H-6 is a non-insulated, rectangular tongue terminal connector designed for 400 MCM (kcmil) conductor sizes. This terminal features a single stud hole accommodating a 5/8 stud and a tab thickness of 0.180 inches (4.57mm). The outer edges measure 1.390 inches (35.31mm) in width. Termination is achieved via crimp barrel connection. The mounting type offers flexibility with options for free hanging (in-line) or a 45° angle. This component is typically utilized in power distribution and heavy-duty electrical applications. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 400MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 5/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.390"" (35.31mm) |
| Tab Thickness | 0.180"" (4.57mm) |
| Terminal Style | Single Stud Hole |
