LCB400-58F-6
CONN TERM RECT TONG 400 MCM #5/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

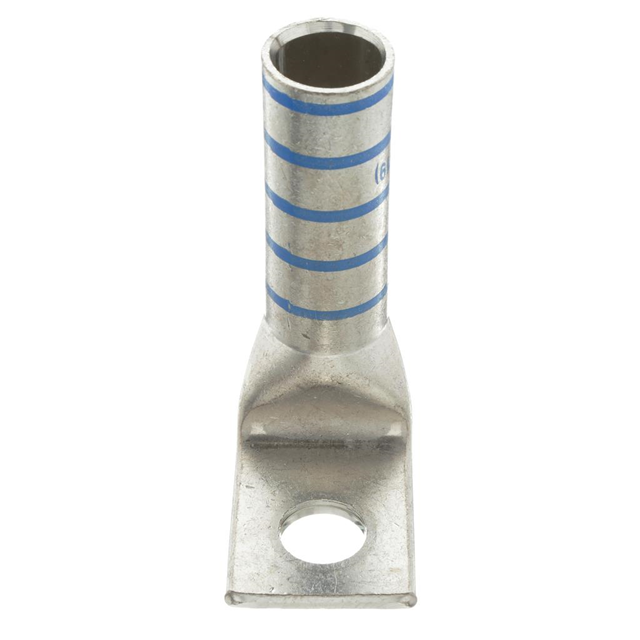

Panduit Corp Pan-Lug™ LCB400-58F-6 is a non-insulated, rectangular tongue terminal connector designed for high-current applications. This component features a single stud hole with a 5/8" stud size and a tab thickness of 0.180" (4.57mm). It is engineered for terminating 400 MCM (kcmil) wire gauge conductors using a crimp barrel termination method. The overall width is 1.390" (35.31mm). The LCB400-58F-6 offers flexible mounting options, supporting both free hanging (in-line) and right-angle configurations. This terminal connector is commonly utilized in power distribution, heavy industrial equipment, and renewable energy systems where reliable and robust electrical connections are paramount. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 400MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 5/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.390"" (35.31mm) |
| Tab Thickness | 0.180"" (4.57mm) |
| Terminal Style | Single Stud Hole |
