LCB400-58-6
CONN TERM RECT TONG 400 MCM #5/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

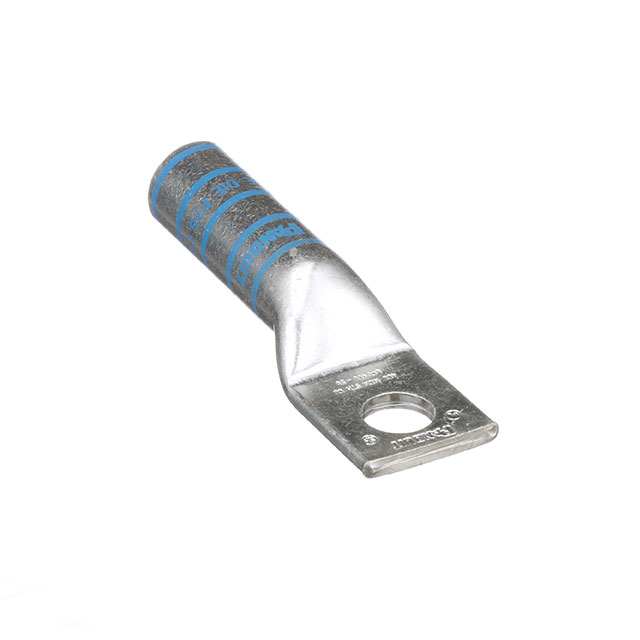

Panduit Corp Pan-Lug™ LCB400-58-6 is a non-insulated, rectangular tongue terminal connector designed for 400 MCM (kcmil) wire. This component features a 5/8 stud size with a tab thickness of 0.180 inches (4.57mm). The overall length measures 4.480 inches (113.79mm) with an outer edge width of 1.390 inches (35.31mm). Termination is achieved through a crimp barrel method, and the mounting type is free hanging (in-line). This terminal is suitable for applications requiring robust electrical connections in industries such as power distribution, industrial automation, and renewable energy. The LCB400-58-6 is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 400MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 5/8 Stud |
| Length - Overall | 4.480"" (113.79mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.390"" (35.31mm) |
| Tab Thickness | 0.180"" (4.57mm) |
| Terminal Style | Single Stud Hole |
