LCB400-38H-6
CONN TERM RECT TONG 400 MCM #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

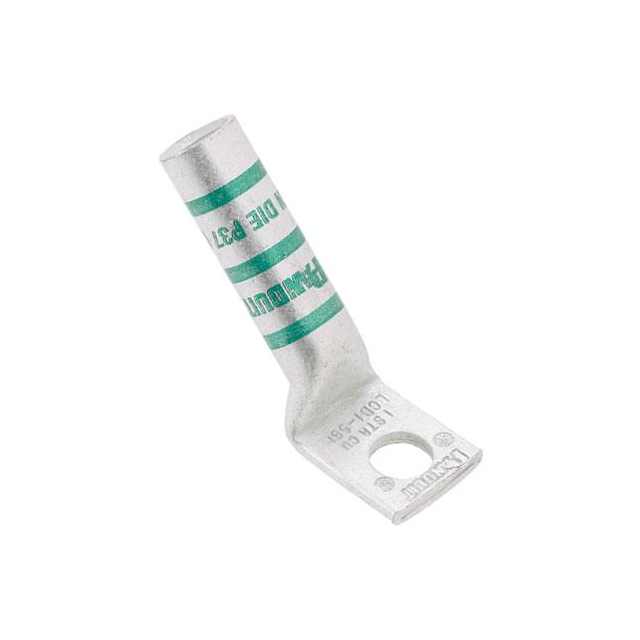

Panduit Corp Pan-Lug™ LCB400-38H-6 is a non-insulated, rectangular tongue terminal connector designed for high-capacity power applications. This component features a barrel termination suitable for crimping and accommodates wire sizes up to 400 MCM (kcmil). The terminal style includes a single stud hole with a 3/8" stud/tab size and a tab thickness of 0.180". With an overall width of 1.390", the LCB400-38H-6 offers a robust connection point. Its mounting type supports both free hanging (in-line) and 45° angle configurations, providing flexibility in system design. This terminal connector is commonly utilized in heavy-duty electrical infrastructure, industrial power distribution, and renewable energy systems where reliable, high-current connections are critical. Packaged in bulk for efficient deployment.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 400MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.390"" (35.31mm) |
| Tab Thickness | 0.180"" (4.57mm) |
| Terminal Style | Single Stud Hole |
