LCB4-10-L
CONN TERM RECT TONG 4 AWG #10Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

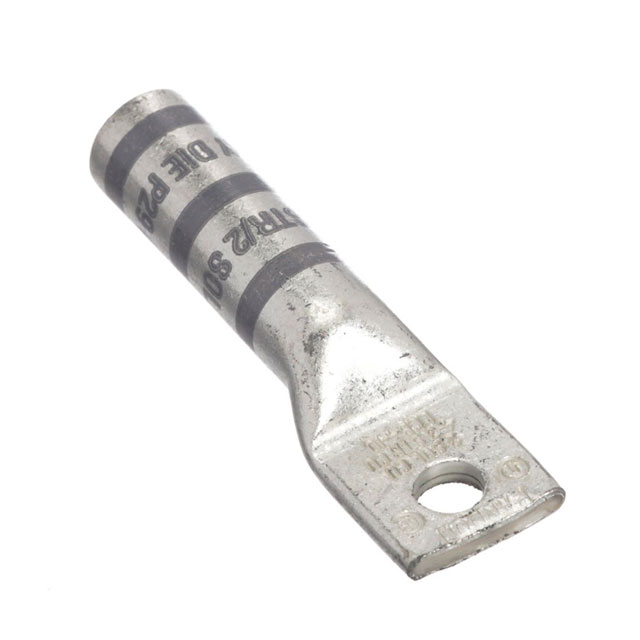

Panduit Corp's Pan-Lug™ LCB4-10-L is a non-insulated rectangular tongue terminal designed for 4 AWG wire. This component features a single stud hole with a 10 stud size and a tab thickness of 0.090 inches (2.29mm). The overall length is 1.860 inches (47.24mm) with an outer width of 0.550 inches (13.97mm). Termination is achieved via crimp to a barrel. The LCB4-10-L is suitable for free hanging (in-line) mounting applications and is supplied in bulk packaging. This terminal is commonly utilized in power distribution and electrical infrastructure applications.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Gray |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 4 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 1.860"" (47.24mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.550"" (13.97mm) |
| Tab Thickness | 0.090"" (2.29mm) |
| Terminal Style | Single Stud Hole |
