LCB4/0-12H-X
CONN TERM RECT TONG 4/0 AWG #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

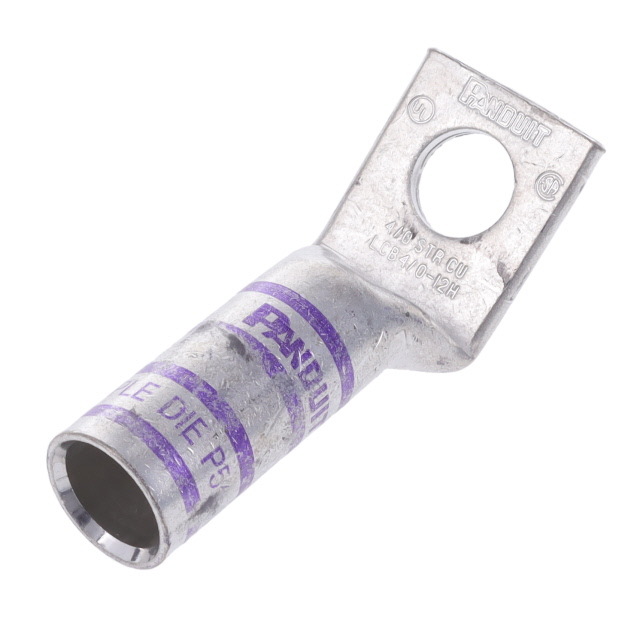

Panduit Corp LCB4-0-12H-X, a member of the Pan-Lug™ series, is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component features a 4/0 AWG wire gauge capacity with a 1/2 stud size, suitable for high-current applications. The terminal style is a single stud hole with a barrel termination for crimping. Key dimensions include a tab thickness of 0.140" (3.56mm) and an outer edge width of 1.060" (26.92mm). Mounting options include free hanging (in-line) and a 45° angle. This terminal is commonly utilized in power distribution, industrial automation, and energy infrastructure where reliable termination of heavy gauge conductors is critical. Packaged in bulk, this component is identified by its purple color coding.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Purple |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 4/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.060"" (26.92mm) |
| Tab Thickness | 0.140"" (3.56mm) |
| Terminal Style | Single Stud Hole |
