LCB4/0-12F-X
CONN TERM RECT TONG 4/0 AWG #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

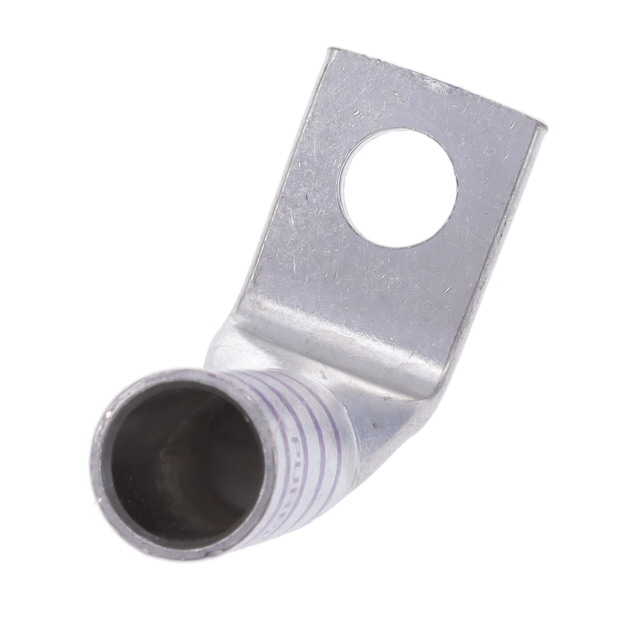

Panduit Corp Pan-Lug LCB4-0-12F-X is a non-insulated, single stud hole, rectangular tongue terminal lug designed for 4/0 AWG wire. This component features a 1/2 stud size with a 0.140" tab thickness and a 1.060" outer width. The termination method is crimp via a barrel. Mounting options include free hanging (in-line) and right angle configurations. This terminal lug is commonly utilized in power distribution, industrial automation, and heavy equipment applications. It is supplied in bulk packaging and is purple in color.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Purple |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 4/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.060"" (26.92mm) |
| Tab Thickness | 0.140"" (3.56mm) |
| Terminal Style | Single Stud Hole |
