LCB250-12H-X
CONN TERM RECT TONG 250 MCM #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

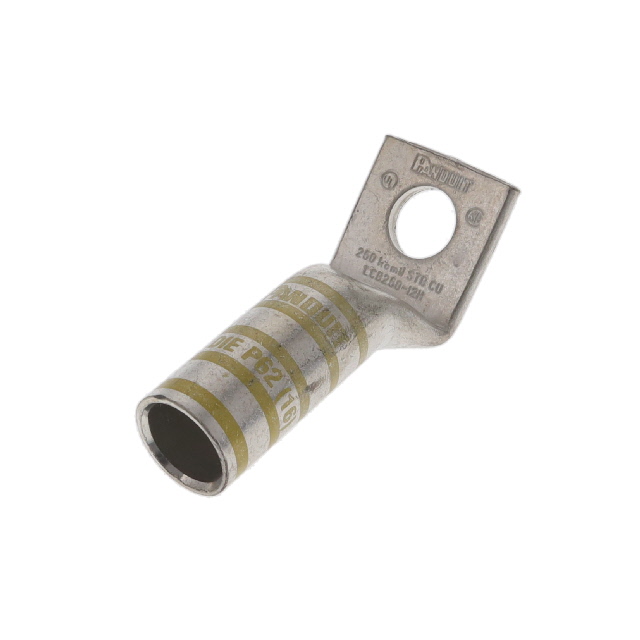

Panduit Corp Pan-Lug™ LCB250-12H-X is a non-insulated, single stud hole terminal connector featuring a rectangular tongue and a 250 MCM (kcmil) wire gauge capacity. Designed for crimp termination via a barrel, this component utilizes a 1/2 Stud size with a tab thickness of 0.140 inches (3.56mm). The overall width is 1.170 inches (29.72mm). This Panduit Corp Pan-Lug™ terminal is suitable for in-line mounting with a 45° angle option. It finds application in power distribution and electrical infrastructure, supporting robust and reliable connections in demanding environments. The LCB250-12H-X is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 250MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.170"" (29.72mm) |
| Tab Thickness | 0.140"" (3.56mm) |
| Terminal Style | Single Stud Hole |
