LCB2-56W-Q
CONN TERM RECT TONG 2 AWG #5/16Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

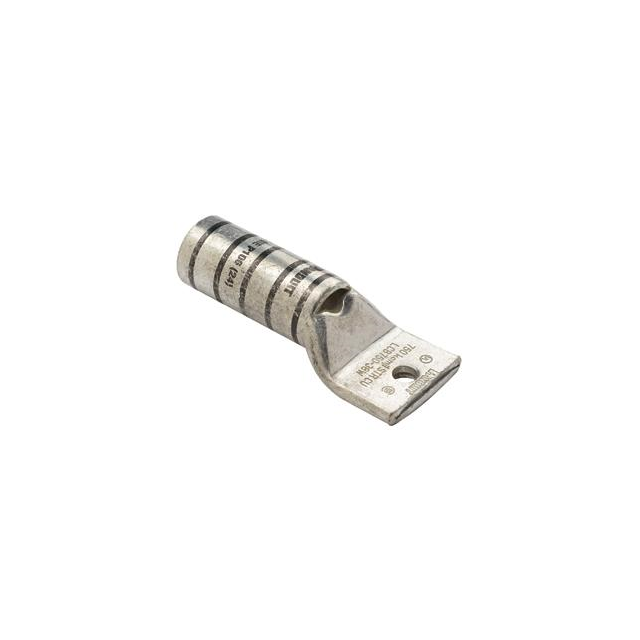

Panduit Corp Pan-Lug™ LCB2-56W-Q is a non-insulated, rectangular tongue terminal connector designed for crimp termination. This component accommodates 2 AWG wire gauge and features a single stud hole with a 5/16 stud size. The overall length is 2.170 inches (55.12mm), with a width of 0.660 inches (16.76mm) and a tab thickness of 0.100 inches (2.54mm). Its free hanging (in-line) mounting type makes it suitable for applications in power distribution and control systems. The LCB2-56W-Q is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 2 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 5/16 Stud |
| Length - Overall | 2.170"" (55.12mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.660"" (16.76mm) |
| Tab Thickness | 0.100"" (2.54mm) |
| Terminal Style | Single Stud Hole |
