LCB2-56H-Q
CONN TERM RECT TONG 2 AWG #5/16Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

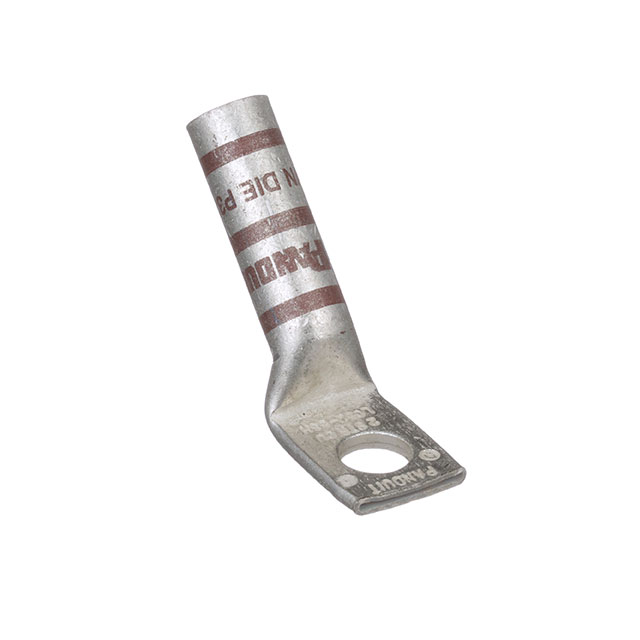

Panduit Corp Pan-Lug™ LCB2-56H-Q is a non-insulated, rectangular tongue terminal designed for reliable electrical connections. This component accommodates 2 AWG wire with a 5/16 stud size, featuring a single stud hole and a tab thickness of 0.100 inches (2.54mm). The terminal style is rectangular tongue, with a termination method of crimp to a barrel. Its outer edge width is 0.660 inches (16.76mm). The mounting type is free hanging (in-line), with an optional 45° angle. This component is commonly utilized in industrial automation, power distribution, and renewable energy applications. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 2 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 5/16 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.660"" (16.76mm) |
| Tab Thickness | 0.100"" (2.54mm) |
| Terminal Style | Single Stud Hole |
