LCB2-10H-Q
CONN TERM RECT TONG 2 AWG #10Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

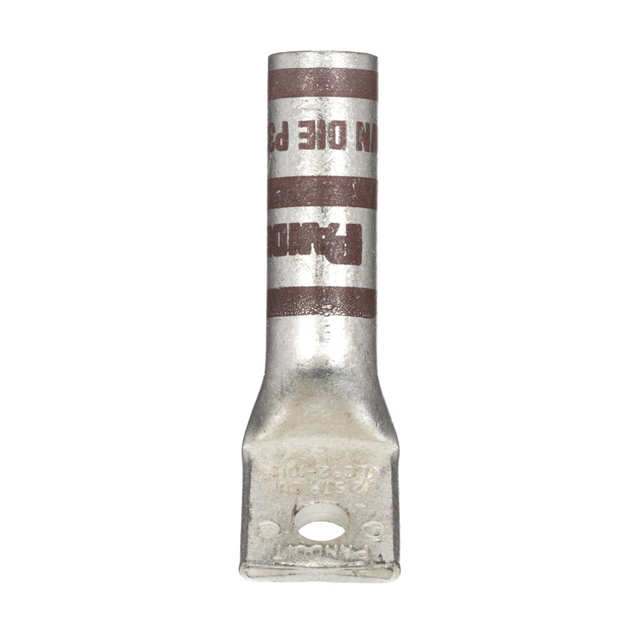

Panduit Corp Pan-Lug™ LCB2-10H-Q is a non-insulated, rectangular tongue terminal connector designed for 2 AWG wire. This component features a single stud hole with a 10 Stud size and a tab thickness of 0.100" (2.54mm). The terminal type is a rectangular tongue, and termination is achieved via crimp to a barrel. The overall width of the outer edges measures 0.600" (15.24mm). Mounting is supported in a free-hanging (in-line) configuration or at a 45° angle. This Panduit Corp component is utilized in power distribution and electrical infrastructure applications.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 2 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 10 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.600"" (15.24mm) |
| Tab Thickness | 0.100"" (2.54mm) |
| Terminal Style | Single Stud Hole |
