LCB10-14WH-L
CONN TERM RECT TONG 10 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

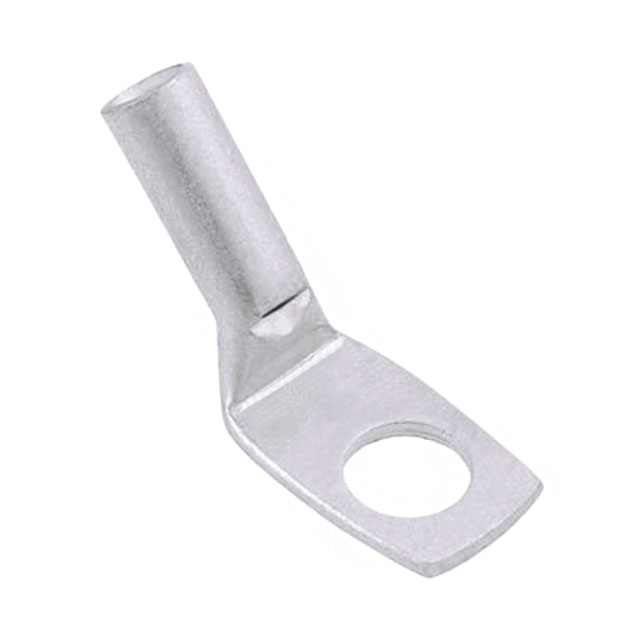

Panduit Corp's Pan-Lug™ LCB10-14WH-L is a non-insulated, rectangular tongue terminal connector designed for 10 AWG wire. This component features a single stud hole with a 1/4" stud size and a tab thickness of 0.050" (1.27mm). The terminal type is rectangular tongue, and termination is achieved via crimp to the barrel. With an outer edge width of 0.420" (10.67mm), this connector offers a free hanging (in-line) mounting type with a 45° angle option. It is commonly utilized in industrial automation, power distribution, and telecommunications applications where reliable electrical connections are critical. The LCB10-14WH-L is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | - |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 10 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.420"" (10.67mm) |
| Tab Thickness | 0.050"" (1.27mm) |
| Terminal Style | Single Stud Hole |
