LCB1-56H-E

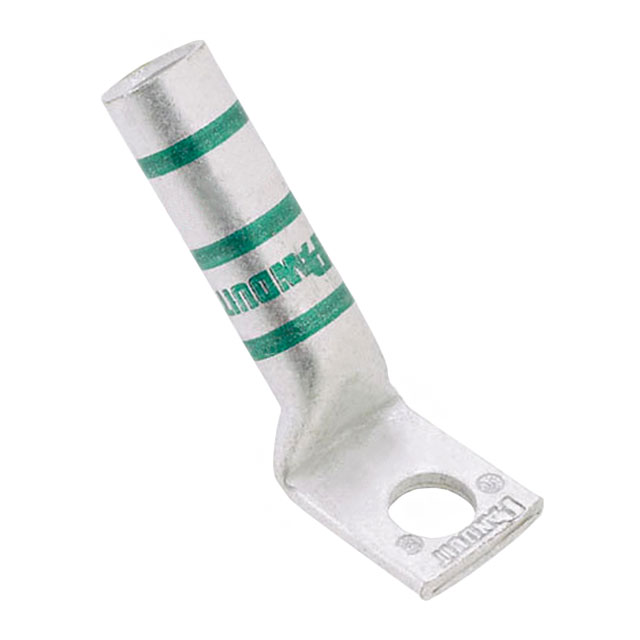

CONN TERM RECT TONG 1 AWG #5/16Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More
Panduit Corp Pan-Lug™ LCB1-56H-E is a non-insulated, single stud hole, rectangular tongue terminal designed for 1 AWG wire gauge. This component features a 5/16 stud size with a tab thickness of 0.110" (2.79mm) and an outer edge width of 0.700" (17.78mm). The termination method is crimp, utilizing a barrel design. Mounting is supported in a free hanging (in-line) configuration, with an option for a 45° angle. The LCB1-56H-E is typically employed in power distribution and electrical infrastructure applications. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Green |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 1 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 5/16 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.700"" (17.78mm) |
| Tab Thickness | 0.110"" (2.79mm) |
| Terminal Style | Single Stud Hole |
