LCB1-14-E
CONN TERM RECT TONG 1 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

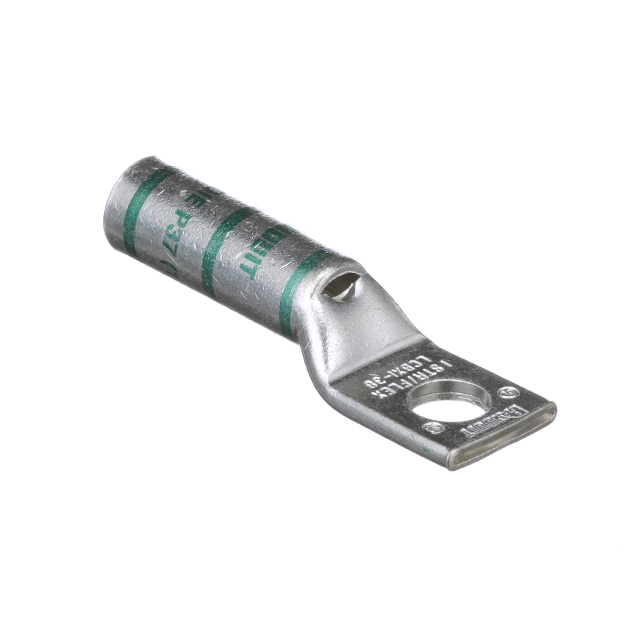

Panduit Corp Pan-Lug™ LCB1-14-E is a non-insulated, rectangular tongue terminal designed for crimp termination of 1 AWG wire. This component features a single stud hole with a 1/4 inch stud size and a tab thickness of 0.110 inches. The overall length is 2.370 inches, with an outer edge width of 0.700 inches. The LCB1-14-E is supplied in bulk packaging and is suitable for free-hanging, in-line mounting. This terminal is commonly utilized in power distribution, electrical infrastructure, and industrial automation applications where reliable wire connections are critical.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Green |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 1 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 2.370"" (60.20mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.700"" (17.78mm) |
| Tab Thickness | 0.110"" (2.79mm) |
| Terminal Style | Single Stud Hole |
