LCB1-10F-E
CONN TERM RECT TONG 1 AWG #10Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

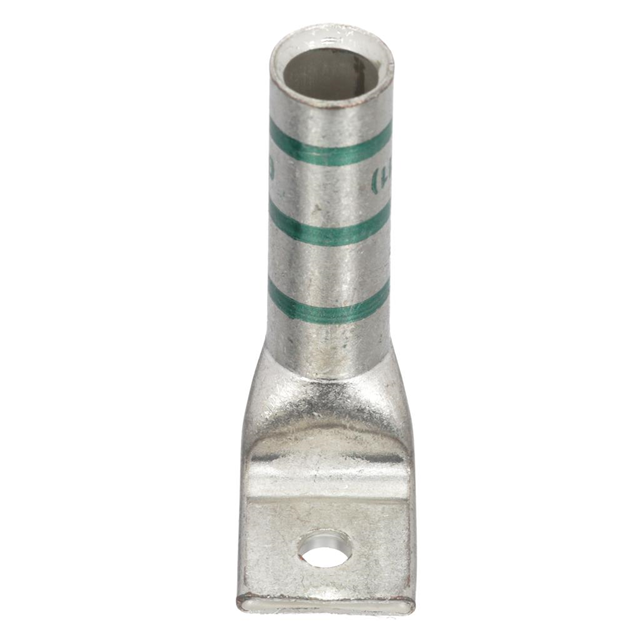

Panduit Corp Pan-Lug™ LCB1-10F-E is a non-insulated, rectangular tongue terminal designed for 1 AWG wire. This terminal features a single stud hole termination with a 10 stud size and a tab thickness of 0.110". The overall width is 0.700". It is engineered for crimp termination onto a barrel. The LCB1-10F-E offers a free hanging (in-line) and right-angle mounting capability. This component is commonly utilized in industrial automation, power distribution, and electrical infrastructure applications where reliable wire termination is critical. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Green |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 1 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 10 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.700"" (17.78mm) |
| Tab Thickness | 0.110"" (2.79mm) |
| Terminal Style | Single Stud Hole |
