LCAXN4/0-14-X
CONN TERM RECT TONG 4/0 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

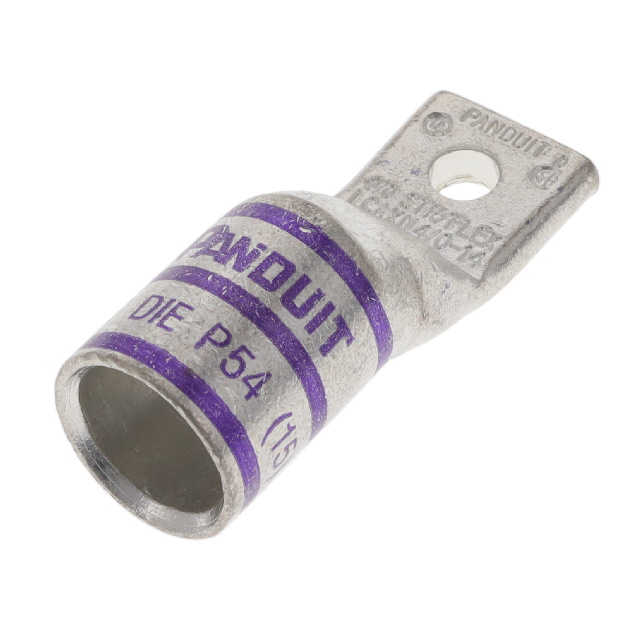

Panduit Corp Pan-Lug™ LCAXN4-0-14-X is a non-insulated, rectangular tongue terminal designed for crimp termination. This component accommodates wire gauges up to 4/0 AWG and features a 1/4 stud size. The overall length is 2.320 inches (58.93mm) with a tab thickness of 0.200 inches (5.08mm) and an outer width of 0.810 inches (20.57mm). Its free hanging (in-line) mounting type makes it suitable for applications in power distribution, industrial automation, and heavy equipment manufacturing where robust and reliable electrical connections are critical. The terminal is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Purple |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 4/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 2.320"" (58.93mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.810"" (20.57mm) |
| Tab Thickness | 0.200"" (5.08mm) |
| Terminal Style | Single Stud Hole |
