LCAX8-38H-L
CONN TERM RECT TONG 8 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

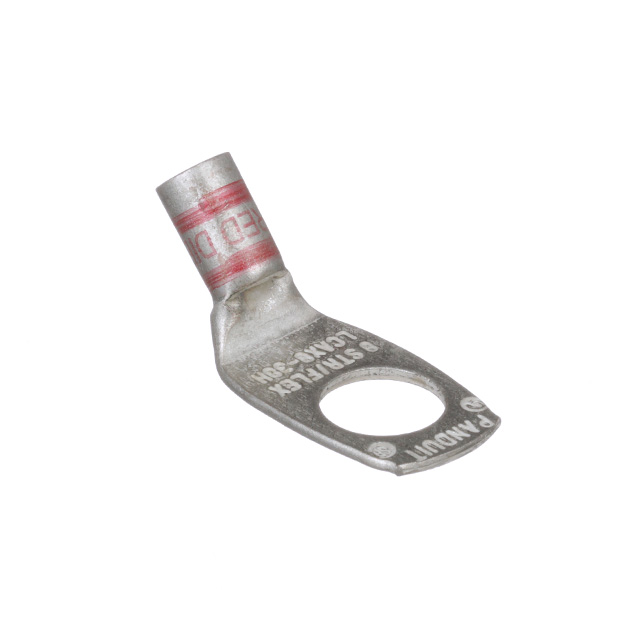

Panduit Corp's Pan-Lug™ LCAX8-38H-L is a non-insulated, rectangular tongue terminal designed for robust electrical connections. This component features a single stud hole accommodating a 3/8" stud size with a tab thickness of 0.050" (1.27mm). The terminal is engineered for 8 AWG wire gauge and utilizes a crimp barrel termination method. Its mounting type is free hanging (in-line) with a 45° angle, facilitating flexible installation. The outer edges measure 0.600" (15.24mm) in width. This terminal connector is suitable for high-demand applications across various industrial sectors, including power distribution and electrical infrastructure. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Red |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 8 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.600"" (15.24mm) |
| Tab Thickness | 0.050"" (1.27mm) |
| Terminal Style | Single Stud Hole |
Request a Quote
