LCAX8-12-L
COPPER COMPRESSION LUG, 1 HOLE,Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

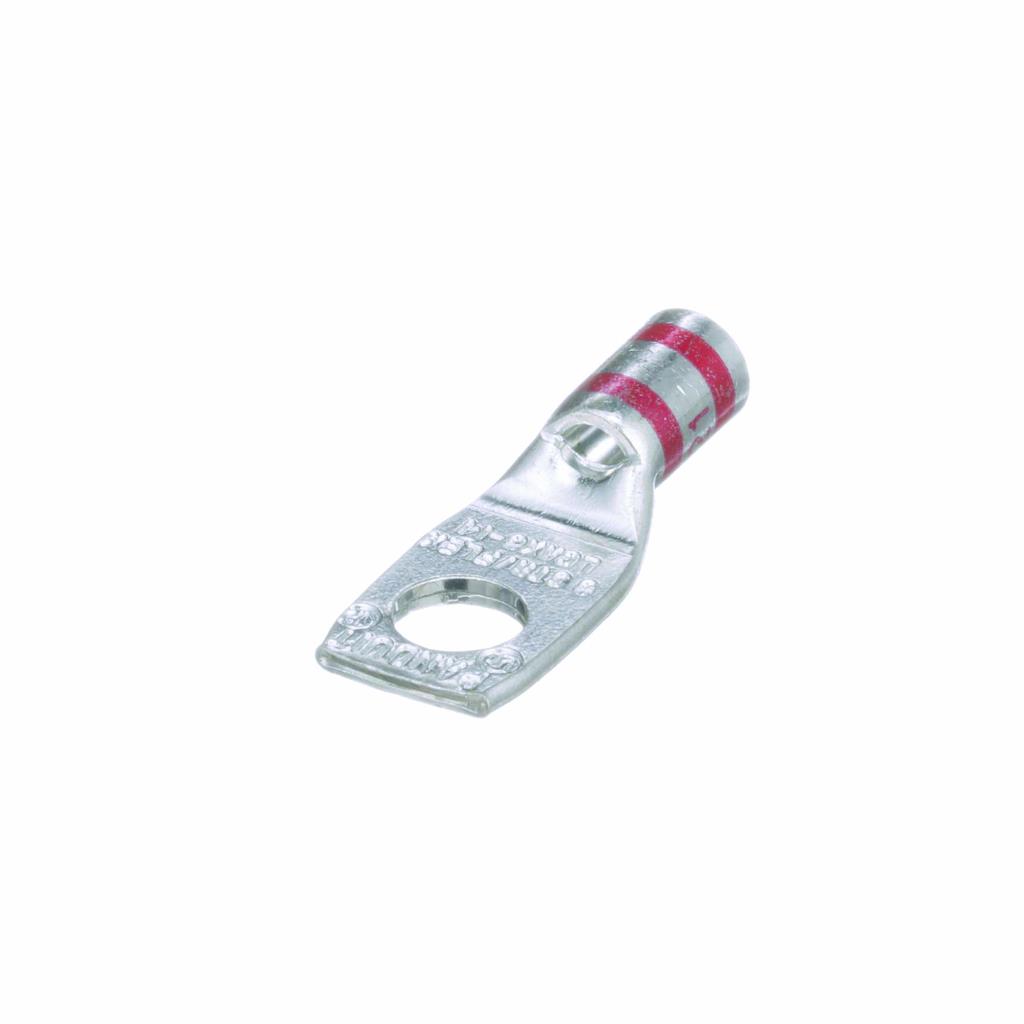

Panduit Corp Pan-Lug™ LCAX8-12-L is a non-insulated copper compression lug designed for secure wire termination. This single stud hole terminal features a rectangular tongue and a barrel termination suitable for crimping. It accommodates wire gauges from 6 to 8 AWG and is specified for a 1/2 stud size. The lug has an overall length of 1.650 inches (41.91mm) and an outer edge width of 0.750 inches (19.05mm), with a tab thickness of 0.120 inches (3.05mm). Its free hanging (in-line) mounting type makes it suitable for various electrical connection applications across industries such as power distribution and industrial automation. This component is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 6-8 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | 1.650"" (41.91mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.750"" (19.05mm) |
| Tab Thickness | 0.120"" (3.05mm) |
| Terminal Style | Single Stud Hole |
