LCAX750-12F-3
CONN TERM RECT TONG 750 MCM #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

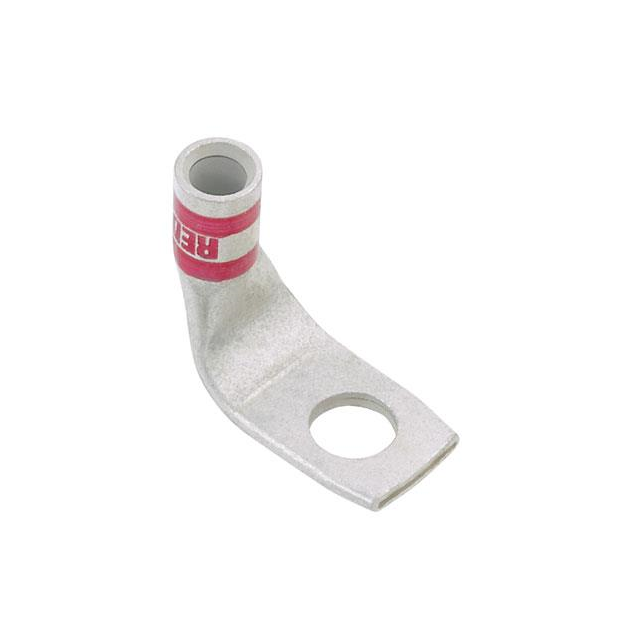

Panduit Corp Pan-Lug™ LCAX750-12F-3 is a non-insulated, rectangular tongue terminal connector designed for 750MCM (kcmil) wire. This component features a single stud hole with a 1/2" stud size and a tab thickness of 0.320". The termination method is crimp, utilizing a barrel for secure connection. With an outer width of 2.170", this terminal is suitable for demanding applications such as power distribution, industrial automation, and renewable energy systems. Packaged in bulk, the LCAX750-12F-3 offers robust performance for high-current electrical connections.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 750MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 2.170"" (55.12mm) |
| Tab Thickness | 0.320"" (8.13mm) |
| Terminal Style | Single Stud Hole |
