LCAX6-14H-L
CONN TERM RECT TONG 6 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

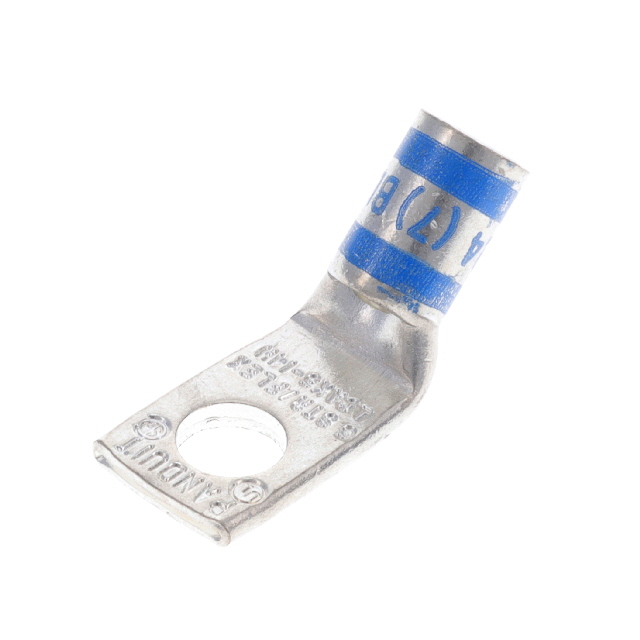

Panduit Corp Pan-Lug™ LCAX6-14H-L is a non-insulated, rectangular tongue terminal connector designed for 6 AWG wire. This component features a single 1/4 stud hole for termination, with a crimp barrel connection type. The terminal offers a tab thickness of 0.080 inches (2.03mm) and an outer edge width of 0.480 inches (12.19mm). Mounting is supported in a free hanging (in-line) configuration or at a 45° angle. This component is commonly utilized in power distribution, industrial automation, and electrical infrastructure applications. Packaged in bulk.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 6 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.480"" (12.19mm) |
| Tab Thickness | 0.080"" (2.03mm) |
| Terminal Style | Single Stud Hole |
