LCAX500-58F-6
CONN TERM RECT TONG 500 MCM #5/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

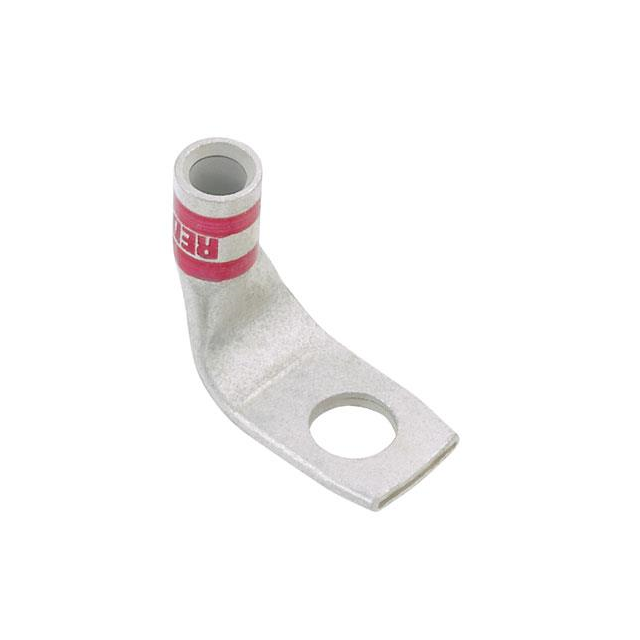

The Panduit Corp Pan-Lug™ LCAX500-58F-6 is a non-insulated, rectangular tongue terminal connector designed for high-capacity electrical connections. This component features a single 5/8 stud hole and is rated for 500 MCM (kcmil) wire gauge. The termination method is crimp, utilizing a barrel for secure conductor attachment. With an outer edge width of 1.890 inches (48.01mm) and a tab thickness of 0.260 inches (6.60mm), it provides robust mechanical and electrical performance. The mounting type allows for free hanging (in-line) or right-angle configurations. This terminal is commonly employed in power distribution, industrial automation, and heavy equipment manufacturing sectors where reliable, high-current terminations are critical.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Pink |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 500MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 5/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.890"" (48.01mm) |
| Tab Thickness | 0.260"" (6.60mm) |
| Terminal Style | Single Stud Hole |
