LCAX500-38F-6
CONN TERM RECT TONG 500 MCM #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

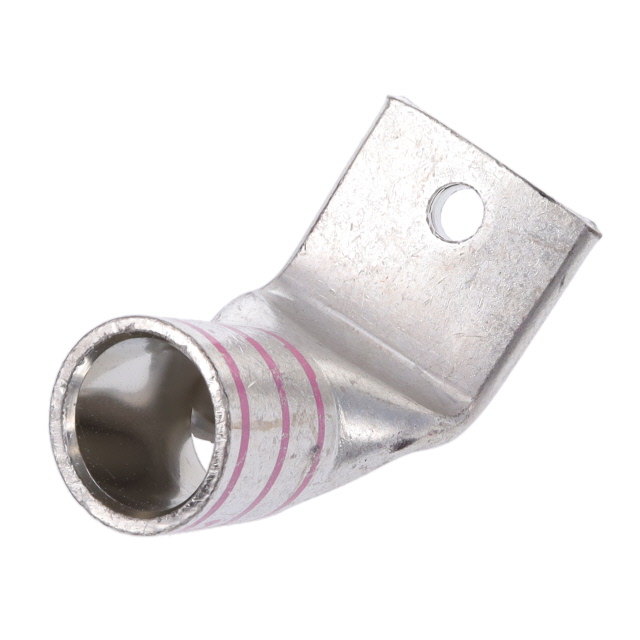

Panduit Corp Pan-Lug™ LCAX500-38F-6 is a non-insulated, rectangular tongue terminal designed for high-current applications. This crimp-style lug features a single stud hole with a 3/8" stud size and a tab thickness of 0.260" (6.60mm). It is engineered to accept wire gauges up to 500MCM (kcmil) and offers a barrel termination for secure connections. The terminal has an overall width of 1.890" (48.01mm). Applications for this component are prevalent in power distribution, industrial automation, and heavy-duty electrical infrastructure. Supplied in bulk packaging with a pink color code.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Pink |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 500MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.890"" (48.01mm) |
| Tab Thickness | 0.260"" (6.60mm) |
| Terminal Style | Single Stud Hole |
