LCAX500-12F-6
CONN TERM RECT TONG 500 MCM #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

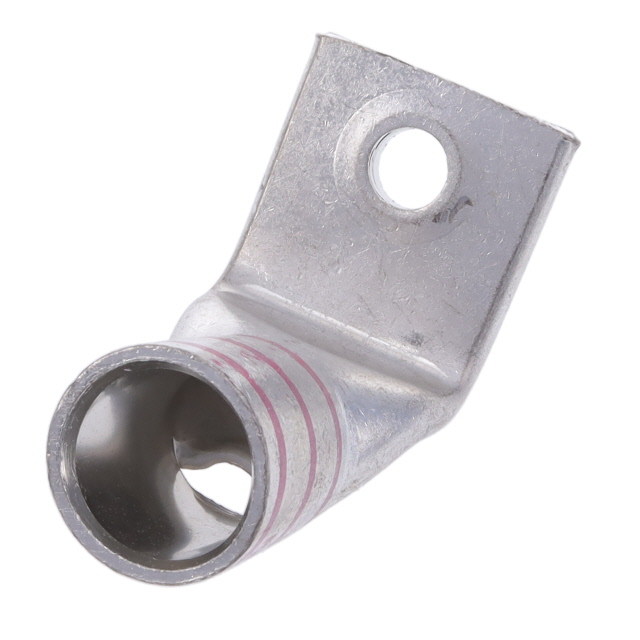

Panduit Corp Pan-Lug™ LCAX500-12F-6 is a non-insulated, rectangular tongue terminal connector. Designed for crimp termination, this component features a single stud hole with a 1/2 stud size and a tab thickness of 0.260 inches (6.60mm). The overall width across outer edges is 1.890 inches (48.01mm). It accommodates wire gauges up to 500 MCM (kcmil). Mounting options include free hanging (in-line) and right angle configurations. This terminal is utilized in various industrial applications requiring robust electrical connections, including power distribution and heavy equipment manufacturing. The LCAX500-12F-6 is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Pink |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 500MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.890"" (48.01mm) |
| Tab Thickness | 0.260"" (6.60mm) |
| Terminal Style | Single Stud Hole |
