LCAX4-38F-L
CONN TERM RECT TONG 4 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

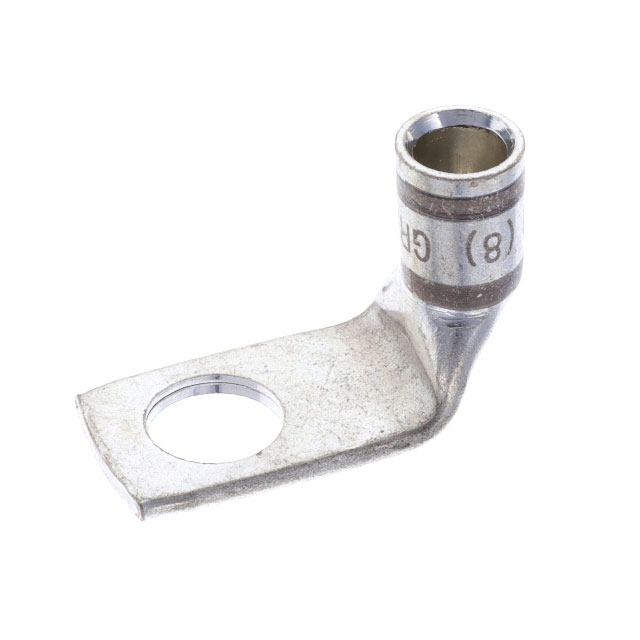

The Panduit Corp Pan-Lug™ LCAX4-38F-L is a non-insulated, rectangular tongue terminal connector designed for 4 AWG wire. This component features a single stud hole with a 3/8" stud size and a tab thickness of 0.070". The terminal style is a rectangular tongue with a crimp barrel termination. Its overall width is 0.620". The LCAX4-38F-L is suitable for mounting in free hanging (in-line) or right-angle configurations. This component is commonly utilized in power distribution and electrical connection applications within industrial and commercial sectors. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Gray |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 4 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.620"" (15.75mm) |
| Tab Thickness | 0.070"" (1.78mm) |
| Terminal Style | Single Stud Hole |
