LCAX4-10F-L
CONN TERM RECT TONG 4 AWG #10Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

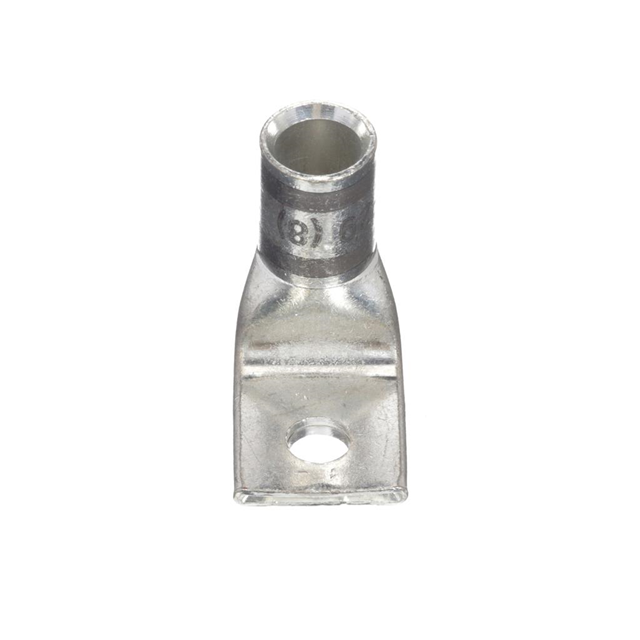

Panduit Corp Pan-Lug™ LCAX4-10F-L is a non-insulated, rectangular tongue terminal designed for robust electrical connections. This component features a single stud hole for a #10 stud size, accommodating 4 AWG wire. The termination method is crimp, utilizing a barrel for secure wire attachment. Manufactured with a tab thickness of 0.090" (2.29mm) and an overall width of 0.550" (13.97mm), it offers a durable solution for demanding applications. The mounting type supports free-hanging (in-line) or right-angle configurations. This component is commonly utilized in industrial automation, power distribution, and electrical infrastructure markets where reliable termination of heavy gauge conductors is critical. Packaged for bulk distribution, the Panduit Corp Pan-Lug™ LCAX4-10F-L ensures efficient integration into high-volume manufacturing processes.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Gray |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 4 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 10 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.550"" (13.97mm) |
| Tab Thickness | 0.090"" (2.29mm) |
| Terminal Style | Single Stud Hole |
