LCAX4/0-34-X
CONN TERM RECT TONG 4/0 AWG #3/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

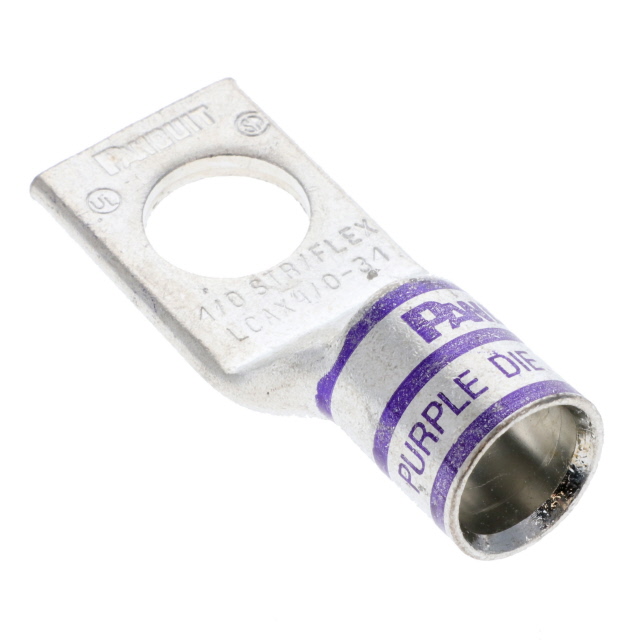

Panduit Corp Pan-Lug™ LCAX4-0-34-X is a non-insulated, rectangular tongue terminal designed for 4/0 AWG wire. This component features a single stud hole with a 3/4" stud size and a tab thickness of 0.160". The overall length is 3.040" (77.22mm) with an outer edge width of 1.190" (30.23mm). Termination is achieved via crimp to a barrel. This terminal is suitable for in-line, free-hanging applications and is commonly utilized in power distribution and heavy-duty electrical connections within industrial and utility sectors. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Purple |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 4/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/4 Stud |
| Length - Overall | 3.040"" (77.22mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.190"" (30.23mm) |
| Tab Thickness | 0.160"" (4.06mm) |
| Terminal Style | Single Stud Hole |
