LCAX300-58-6
CONN TERM RECT TONG 300 MCM #5/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

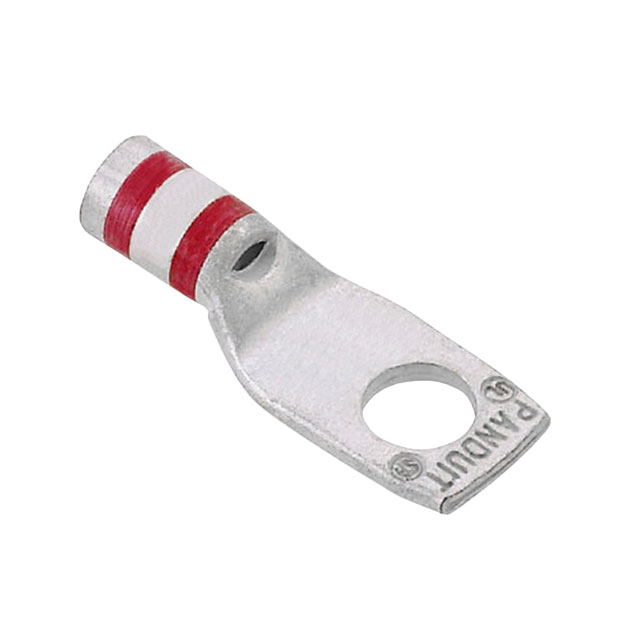

Panduit Corp Pan-Lug™ LCAX300-58-6 is a non-insulated, rectangular tongue terminal designed for crimp termination of 300MCM (kcmil) wire. This terminal features a single stud hole for a 5/8 stud, with a tab thickness of 0.180 inches (4.57mm). The overall length is 3.120 inches (79.25mm), and the outer edges measure 1.390 inches (35.31mm) in width. Engineered for a free-hanging, in-line mounting configuration, this component is suitable for applications within the power distribution and industrial automation sectors. The LCAX300-58-6 is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 300MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 5/8 Stud |
| Length - Overall | 3.120"" (79.25mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.390"" (35.31mm) |
| Tab Thickness | 0.180"" (4.57mm) |
| Terminal Style | Single Stud Hole |
