LCAX300-38H-6
CONN TERM RECT TONG 300 MCM #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

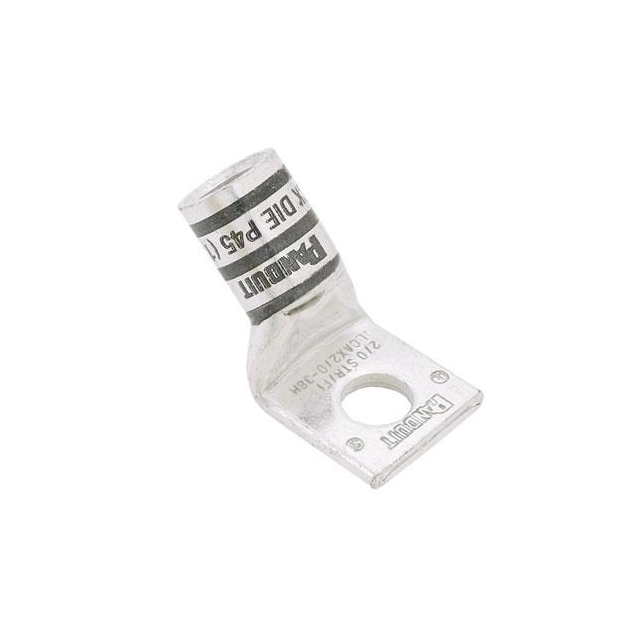

Panduit Corp Pan-Lug™ LCAX300-38H-6 is a non-insulated, rectangular tongue terminal designed for 300MCM (kcmil) wire gauge. This bulk-packaged component features a single stud hole with a 3/8" stud size and a tab thickness of 0.180" (4.57mm). The overall width of the outer edges is 1.390" (35.31mm). Termination is achieved via crimp to the barrel. Mounting options support free hanging (in-line) or a 45° angle configuration. This terminal connector is suitable for high-power electrical applications across industries such as utility, industrial, and renewable energy.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Red |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 300MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.390"" (35.31mm) |
| Tab Thickness | 0.180"" (4.57mm) |
| Terminal Style | Single Stud Hole |
