LCAX300-12H-6
CONN TERM RECT TONG 300 MCM #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

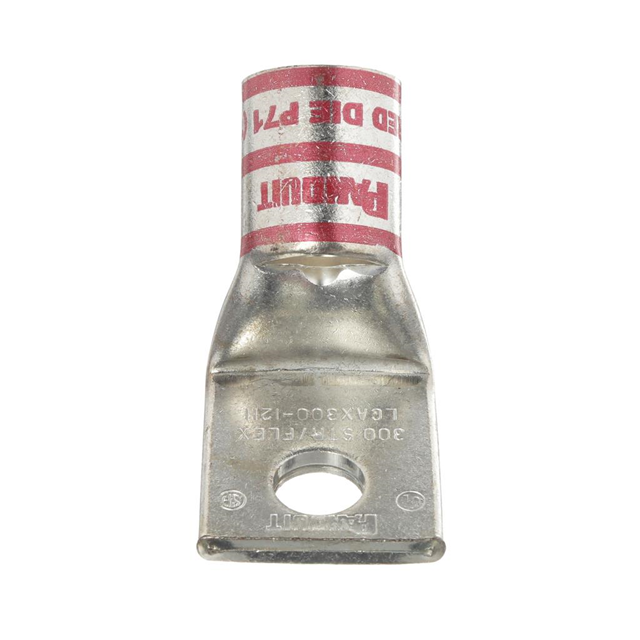

Panduit Corp Pan-Lug™ LCAX300-12H-6 is a non-insulated, rectangular tongue terminal connector designed for 300MCM (kcmil) wire. This component features a single stud hole with a 1/2" stud size and a tab thickness of 0.180" (4.57mm). Termination is achieved via crimp to a barrel. The overall width across outer edges measures 1.390" (35.31mm). Mounting options include free hanging (in-line) or at a 45° angle. This terminal is suitable for applications in utility, industrial, and telecommunications sectors where reliable power and signal connections are critical. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Red |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 300MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.390"" (35.31mm) |
| Tab Thickness | 0.180"" (4.57mm) |
| Terminal Style | Single Stud Hole |
