LCAX3/0-56H-X
CONN TERM RECT TONG 3/0AWG #5/16Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

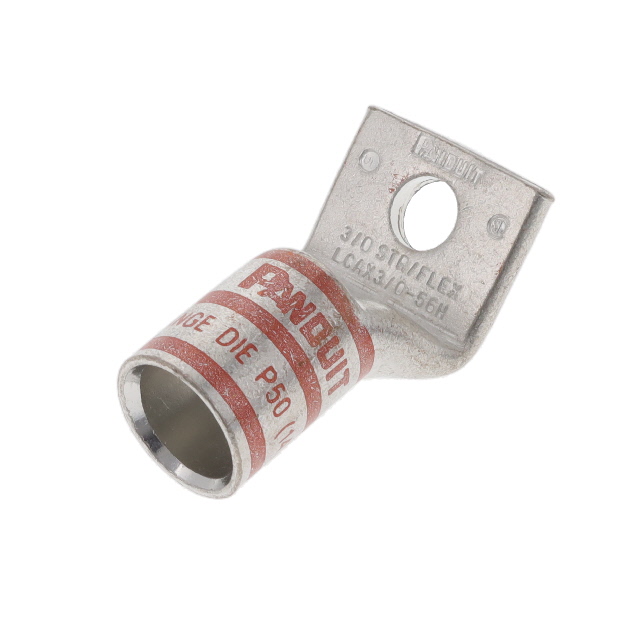

Panduit Corp Pan-Lug™ LCAX3-0-56H-X is a non-insulated, rectangular tongue terminal connector. Designed for crimp termination of 3/0 AWG wire, it features a single 5/16 stud hole for secure connection. The terminal offers a robust construction with a width of 1.060 inches (26.92mm) and a tab thickness of 0.140 inches (3.56mm). This component is suitable for free hanging (in-line) or 45° angle mounting configurations. Industries such as power distribution, industrial automation, and renewable energy commonly utilize this type of terminal for reliable electrical connections. The LCAX3-0-56H-X is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Orange |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 3/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 5/16 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.060"" (26.92mm) |
| Tab Thickness | 0.140"" (3.56mm) |
| Terminal Style | Single Stud Hole |
Request a Quote
