LCAX3/0-38-T
COPPER COMPRESSION LUG, 1 HOLE,Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

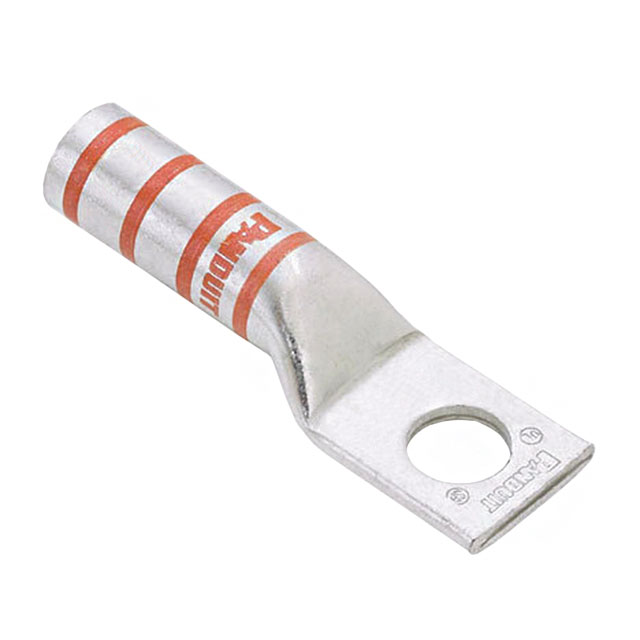

Panduit Corp Pan-Lug™ LCAX3-0-38-T is a non-insulated copper compression lug designed for robust electrical connections. This terminal connector features a rectangular tongue and a single stud hole termination, accepting 3/0 AWG wire. The lug is engineered for crimp barrel termination, ensuring a secure and reliable connection. With a 3/8 stud size and a tab thickness of 0.140 inches, it offers substantial contact area. Manufactured with a bulk packaging configuration, its dimensions include an overall length of 2.170 inches and an outer edge width of 1.060 inches. This component is commonly utilized in power distribution, industrial control systems, and renewable energy applications where dependable termination of high-gauge conductors is critical.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Orange |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 3/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | 2.170"" (55.12mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.060"" (26.92mm) |
| Tab Thickness | 0.140"" (3.56mm) |
| Terminal Style | Single Stud Hole |
