LCAX3/0-14F-X
CONN TERM RECT TONG 3/0 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

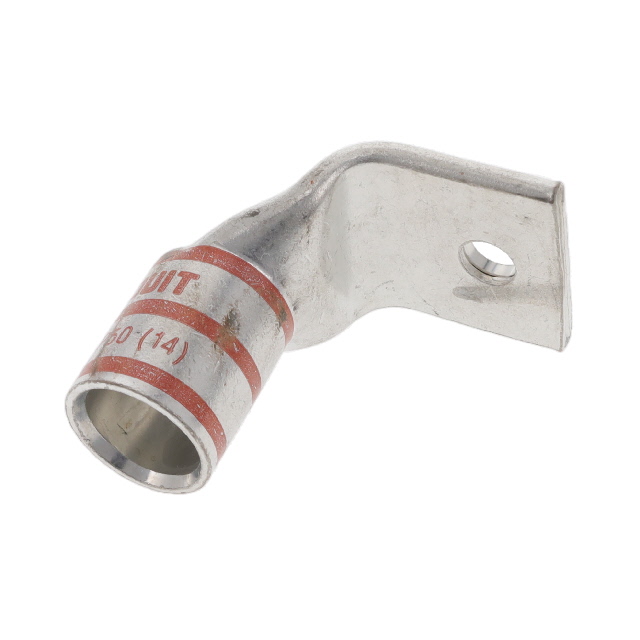

Panduit Corp Pan-Lug™ terminal connector, part number LCAX3-0-14F-X, is a non-insulated, rectangular tongue, single stud hole terminal designed for 3/0 AWG wire. This component features a 1/4 stud size with a tab thickness of 0.140 inches (3.56mm) and an outer width of 1.060 inches (26.92mm). The termination method is crimp, utilizing a barrel design. Mounting is supported in a free hanging (in-line) or right angle configuration. This terminal is suitable for applications within the industrial and energy sectors. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Orange |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 3/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.060"" (26.92mm) |
| Tab Thickness | 0.140"" (3.56mm) |
| Terminal Style | Single Stud Hole |
